Turbofan Engine Noise Reduction Design
With the expansion of air transportation and the increase in air traffic over recent decades , aircraft engine noise pollution has become one of the major
environmental challenges. Turbofan engines, which are currently the most widely used jet engines in commercial aviation , despite their high efficiency,
are considered primary sources of in-flight noise.Reducing the noise of these engines not only improves the experience of passengers and residents near
airports, but also fulfills key requirements for compliance with international standards such as ICAO Annex 16.
Noise Sources in Turbofan Engines
To design an effective noise reduction strategy, the primary noise sources in a turbofan engine must be identified. These sources include:
Fan Noise
The fan is located at the front of the engine and produces significant noise due to its high-speed rotation and interaction with the incoming airflow . This
noise includes tonal components (due to blade count) and broadband noise.
Turbine and Compressor Noise
Rotating blades in the turbine and compressor generate high-frequency noises through their interaction with the passing airflow.Although generally weaker
than fan noise, they become more relevant at high speeds.
Jet Noise
Jet noise results from the mixing of the high-speed exhaust flow with ambient air . While more prominent in turbojet engines , it is significantly reduced in
high-bypass turbofan engines.
Combustion Noise
The combustion process in the combustion chamber can also be a noise source , especially in older engine designs or improperly tuned systems.
Design Approaches for Noise Reduction
Increasing Bypass Ratio
One of the most effective methods for noise reduction is increasing the engine’s bypass ratio . In high – bypass turbofan engines , the majority of thrust is
generated by the fan airflow rather than by the hot exhaust gases from the turbine. This reduces jet noise and improves efficiency.
Example: GE90 and Rolls-Royce Trent engine series have high bypass ratios and lower noise levels compared to older models.
Aerodynamic Design of Fan Blades
The shape, number, and angle of attack of fan blades have a major influence on noise generation. The use of swept blades and asymmetrical blade designs
can reduce tonal noise.Additionally,using fans with varied blade counts or shark-fin-like serrations on leading edges helps reduce airflow turbulence and noise.
Use of Acoustic Liners
The interior walls of the fan duct and exhaust nozzle are often lined with materials that absorb acoustic energy . These liners , made of porous materials or
honeycomb structures, absorb specific sound waves at certain frequencies.
Silencer Design in the Exhaust Nozzle

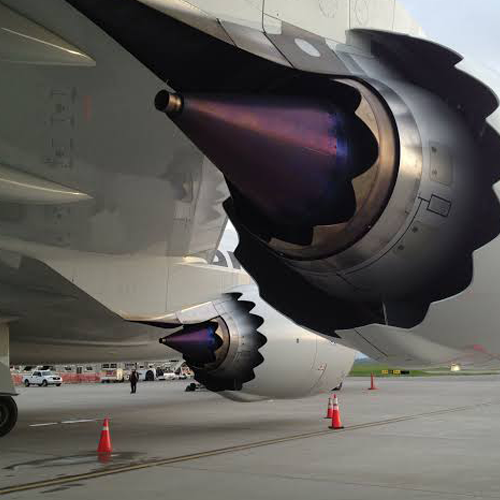

Some engines use segmented nozzles (chevron nozzles) that mix the exhaust gases more gently with the surrounding air . This reduces jet noise , especially
during takeoff and climb.
Active Noise Control
Still under development, this technology uses sensors and actuators to emit sound waves that are out of phase with the unwanted noise. These counter-waves
actively cancel or reduce the undesired noise.
Combustion Process Optimization
Improving the design of the combustion chamber and precisely controlling fuel flow can reduce pressure fluctuations and damaging phenomena such as
combustion instability, thus lowering combustion noise.
Multifaceted Design Considerations
a) Materials and Weight
Using lightweight and durable materials such as composites in fan and body construction helps reduce weight and control vibrations. Lower vibrations also
result in reduced induced noise.
b) Impact on Engine Performance
Noise reduction should not come at the cost of efficiency or increased fuel consumption. Therefore , a multi-objective optimization in the design process is
required to balance noise, efficiency, and weight.
c) Cost and Manufacturability
Some methods, such as active noise control, are expensive and complex. Therefore, cost of production and maintenance must be carefully considered when
selecting solutions.
International Standards and Requirements
The International Civil Aviation Organization (ICAO), through Annex 16, imposes noise limits on aircraft engines during different flight phases (takeoff, overflight,
landing). These standards must be incorporated during the design phase to ensure the engine is certified for commercial use.
Future Technologies in Noise Reduction
Open Rotor Engines: Though inherently noisier, advanced designs can help manage and control their noise output.
Hybrid-Electric Propulsion: Replacing part of the propulsion system with electric components reduces overall engine noise.
Smart Materials: Materials with controllable acoustic properties will play a key role in future acoustic liner designs.
Conclusion
Reducing turbofan engine noise is one of the most critical and necessary challenges in the design of next- generation engines . By identifying noise sources and
implementing a combination of aerodynamic design strategies, advanced materials , acoustic liners , and innovative technologies , significant noise reduction can
be achieved. These efforts not only enhance the quality of life for residents near airports but also support environmental compliance , enabling broader utilization
of aircraft.
