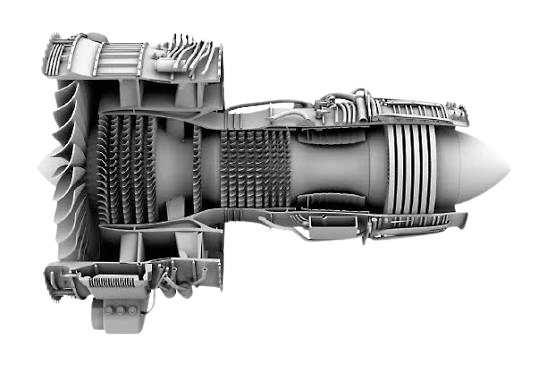

Turbofan engine modeling in engineering software
The turbofan engine, as the most common type of engine in commercial aircraft, is one of the most complex engineering systems in the aerospace industry.
Designing and analyzing these engines requires a deep understanding of thermodynamics , fluid dynamics , solid mechanics , heat transfer , and acoustics.
Modeling this system in engineering software enables engineers to evaluate the performance, stability,efficiency,and behavior of various engine components
before physical construction. This approach saves time and costs and reduces risks in industrial designs.
Purpose of Turbofan Engine Modeling
Engineering modeling of turbofan engines serves various purposes, including thermodynamic analysis of overall engine performance under different flight conditions,
aerodynamic and fluid flow analysis in the fan, compressor, combustion chamber, and turbine, as well as thermal and mechanical analysis of components exposed to
high temperatures or severe stress.
Turbofan engine modeling in engineering software also allows engineers to perform dynamic and vibration analysis to identify resonances or structural fatigue, acoustic
modeling to predict and reduce engine noise, and control system design for real-time engine performance optimization.
Steps of Turbofan Engine Modeling
Complete Turbofan engine modeling in engineering software is conducted in several stages:
1. One-Dimensional Modeling (1D Simulation)
At this stage, software such as GasTurb or NPSS (Numerical Propulsion System Simulation) is used. These tools assume one-dimensional flow and calculate pressure,
temperature, and velocity distributions along the engine path, predicting overall engine characteristics like thrust, specific fuel consumption, and efficiency.
Advantages of 1D Modeling:
High analysis speed
Suitable for conceptual design
Assessment of different operational scenarios
2. Three-Dimensional Fluid Flow Modeling (CFD)
To analyze aerodynamic behavior in engine components, Turbofan engine modeling in engineering software uses Computational Fluid Dynamics (CFD) tools such as
ANSYS Fluent, CFX, OpenFOAM, and STAR-CCM+.
Applications of CFD:
Investigating flow separation in fans and compressors
Analyzing mixing flow in combustion chambers
Modeling turbulence, heat transfer, and phase change
Optimizing blade and duct geometries
In these analyses, proper meshing, accurate boundary conditions, turbulence model selection, and suitable solvers are critical.
3. Thermal and Mechanical Analysis (FEA)
Software such as ANSYS Mechanical, ABAQUS, and COMSOL are used to analyze mechanical stresses, temperature distribution, creep, fatigue, and thermal stresses
in components like turbine blades or combustion chambers.
Key Features of This Stage:
Evaluating component resistance against high temperatures
Analyzing centrifugal stress due to rotation
Designing thermal coatings and cooling systems
4. Acoustic and Noise Analysis
For simulating and modeling noise generated in turbofan engines, tools such as Actran, LMS Virtual.Lab, or COMSOL Acoustics are employed. This type of Turbofan
engine modeling in engineering software helps reduce fan, turbine, and jet exhaust noise, ensuring compliance with modern environmental standards.
5. Control System Modeling
Engine control systems use software like MATLAB/Simulink or Modelica for simulating dynamic behavior, designing PID, fuzzy, or adaptive controllers, and identifying
engine behavior during transient conditions.
Key Software in Turbofan Modeling
GasTurb – 1D Thermodynamic Analysis – Fast and accurate for preliminary design
NPSS – Full Propulsion System Simulation – NASA-supported, extensible
ANSYS Fluent / CFX – Flow, Combustion, Heat Transfer Simulation – Suitable for fan, compressor, combustion
ABAQUS / ANSYS Mechanical – Stress, Bending, Creep, and Thermal Analysis – Suitable for mechanical components
COMSOL – Multiphysics Modeling – Integrates flow, acoustics, heat, and structural analysis
MATLAB/Simulink – Control System Design – Closed-loop design for thrust control
Important Notes for Successful Modeling
Validation: Matching simulation results with experimental data to ensure model accuracy
Accurate Boundary Conditions: Correct definition of engine input/output to reflect real flight conditions
Mesh Quality: Mesh quality directly impacts solver accuracy and convergence
Transient Simulation: Essential for analyses like engine start-up or takeoff transition
Hardware Resource Management: CFD or FEA analyses may require high computational resources
Challenges in Turbofan Engine Modeling
High Geometric Complexity: Especially in fans, multi-stage compressors, and turbines
Long Computation Time: Particularly for multiphysics and transient analyses
High Level of Expertise Required: For selecting physical models, solver settings, and interpreting results
Trade-off Between Accuracy and Speed: Highly accurate analyses can be time-consuming; finding balance is key
Conclusion
Turbofan engine modeling in engineering software is an essential method for analyzing and optimizing engine performance. By combining thermal, mechanical,
and aerodynamic simulations, engineers can predict efficiency and reliability before production. With ongoing advances in digital tools, modern turbofan design
has become faster, more accurate, and cost-effective.
