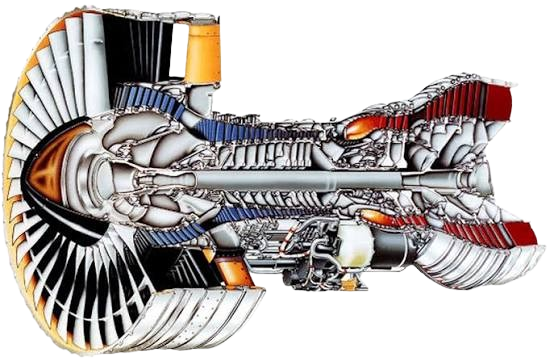

Thermal Design of a Turbofan Engine
Turbofan engines are among the most advanced types of propulsion systems used in commercial and military aircraft.These engines play a vital role in flight by
converting the chemical energy of fuel into thrust. In the functioning of these engines, heat plays a central role. High temperatures in the combustion chamber
and turbine improve thermodynamic efficiency but also introduce challenges such as cooling , selecting heat – resistant materials , and managing the thermal
behavior of the entire system . The goal of thermal design in turbofan engines is to achieve maximum power output with minimum fuel consumption while
ensuring safety and component longevity.
Thermodynamic Process of a Turbofan Engine
A turbofan engine operates on the Brayton cycle, which consists of four main stages:
Compression of air by a multi-stage compressor
Increasing the energy of the air in the combustion chamber by burning fuel
Expansion of hot gases in the turbine and conversion of thermal energy into mechanical energy
Exhaust of gases through the nozzle at high velocity to generate thrust
Thermal design is crucial in each of these stages, especially in combustion and turbine stages where the highest temperatures occur.
Key Parameters in Thermal Design
Turbine Inlet Temperature (TIT)
TIT is one of the most critical performance indicators of an engine . The higher this temperature , the greater the thermal efficiency of the engine . However,
increasing this temperature depends on the heat resistance of turbine blades and the effectiveness of the cooling systems . In modern engines , TIT exceeds
1600–1800°C, while the melting point of turbine metal alloys is around 1300–1400°C.
Compressor Pressure Ratio
A higher pressure ratio increases the temperature of the compressed air entering the combustion chamber , which in turn raises the temperature of the
exhaust gases. This has a direct impact on the amount of thermal energy generated.
Bypass Ratio
While the bypass ratio is mostly discussed in terms of thrust , it also affects thermal design . High bypass ratio engines (such as those used in commercial
aircraft) produce less heat in the hot gas section, simplifying thermal management.
Cooling of Hot Components
One of the most important aspects of thermal design is the cooling systems, especially for turbine blades. Common cooling methods include:
a) Internal Cooling
Compressed cool air from the compressor is directed inside turbine blades and flows through internal channels to absorb heat.
b) Film Cooling
Cool air is discharged through small holes on the surface of the blades , forming a cool film on the outer surface that prevents direct contact between the
hot gases and the metal.
c) Thermal Barrier Coatings (TBC)
Coatings like zirconia, with low thermal conductivity, are applied to hot components to prevent heat transfer to the base metal.
Selection of Heat-Resistant Materials
With increasing engine operating temperatures , there is a growing need for materials that are more resistant to heat and oxidation . Currently, nickel-
based superalloys are the most widely used in hot sections . In more advanced designs , metal-ceramic composites or single crystal alloys are
used to enhance resistance to creep and oxidation.
Thermal Analysis and Numerical Modeling
Thermal design requires detailed analysis of heat transfer , fluid flow , and thermal behavior of components . Analytical methods and numerical software
tools such as ANSYS , Fluent , CFX , and ABAQUS are used to predict temperature , thermal stress , cooling flow distribution , and material response.
Key modeling considerations include:
Combined heat transfer (conduction, convection, radiation)
Considering complex boundary conditions such as rotation and temperature fluctuations
Thermo-mechanical coupling to compute thermal stresses
Thermal Management of the Entire Engine
Beyond internal components , the entire engine requires thermal management to prevent overheating of the casing , oil temperature rise , and fire
hazards. Systems such as:
Lubrication circuits with coolers
Thermal insulation in the engine compartment
Air ventilation inside the nacelle
are employed to ensure safe engine performance.
Role of Thermal Design in Performance Optimization
Good thermal design allows:
Operation at higher temperatures → increased efficiency
Extended lifespan of hot parts → reduced maintenance costs
Better performance at high altitudes and under harsh conditions
However, these advantages must be balanced against limitations such as weight, cost, manufacturability, and safety. Thermal design is a multi-objective
and iterative process.
Conclusion
Thermal design of turbofan engines is one of the most complex aspects of aerospace engineering , involving high temperatures , complex heat transfer,
and the need for advanced materials. To develop high-efficiency , low-fuel-consumption , and reliable engines , engineers must strike a precise balance
between increasing operational temperatures , effective cooling , and proper material selection . Accurate thermal analysis and advanced modeling are
essential tools in this design process.With technological advancements,thermal design of future engines will play a key role in reducing fuel consumption
and minimizing environmental pollutants.
