Plastic Stress Analysis in Metals
In the fields of solid mechanics and materials engineering, examining the mechanical behavior of metals under loading plays a crucial role in the design and analysis
of structures. One of the key phenomena to consider in studying the behavior of metallic materials is plastic stress. Unlike the elastic region, where deformation is
reversible, in the plastic region the material undergoes permanent deformation and may experience damage or failure . Plastic stress analysis in metals is a key
tool for predicting component performance under critical conditions, designing safely, and optimizing metal forming processes.
Stress-Strain Behavior in Metals
When a metal is subjected to mechanical loading,it first enters the elastic region.At this stage, once the load is removed,the material returns to its original shape.
However, as stress increases and surpasses the yield point , the metal enters the plastic region . In this state , even after unloading , the deformation remains.
The stress-strain curve of a metal is typically divided into three parts:
Elastic Region
Plastic Region
Fracture Point
Plastic behavior in this region is complex and depends on the type of material, crystal structure,loading rate, temperature,and prior processes such as rolling or heat
treatment.
Fundamentals of Plastic Stress Analysis
Plastic stress analysis focuses on the state of the material in the nonlinear, inelastic region. In this condition , stress- strain relationships are neither simple nor linear
and require the use of more advanced behavior models. The main goals of this analysis are to understand stress distribution, material deformation, and predict yield
and fracture points.
Flow Rule
One of the core principles in plastic stress analysis is the flow rule, which determines how a material deforms during yielding. This rule mathematically relates
applied stresses to the plastic strain rate. The most commonly used is the Associated Flow Rule, which assumes that the direction of the plastic strain rate is
normal to the yield surface.
Yield Criteria
To predict the onset of plastic behavior, yield criteria are used. The most important ones include:
Von Mises Criterion: The most widely used for ductile metals . It assumes yielding begins when the equivalent strain energy reaches a critical value.
Tresca Criterion: Simpler , and assumes yielding occurs when the maximum shear stress exceeds a certain limit.
Hill Criterion: Used for anisotropic materials, such as rolled metals.
Plastic Behavior Models
Plastic behavior of metals cannot be described by a single simple equation. Therefore, various models have been proposed to simulate this behavior , each
considering specific characteristics of the material.
Isotropic Plasticity Model
This model assumes the material behaves identically in all directions. For many metals, this assumption is reasonably accurate . The Von Mises and Tresca
models fall under this category.
Anisotropic Plasticity Model
For metals that have undergone special processes such as rolling, stretching, or forging, the mechanical properties vary with direction. The Hill and Barlat models
are suitable for analyzing these materials.
Hardening
After yielding, material behavior can follow three types of hardening:
Isotropic Hardening: The yield surface expands, but its shape remains unchanged.
Kinematic Hardening: The yield surface shifts.
Combined Hardening: A combination of the above two and is more realistic.

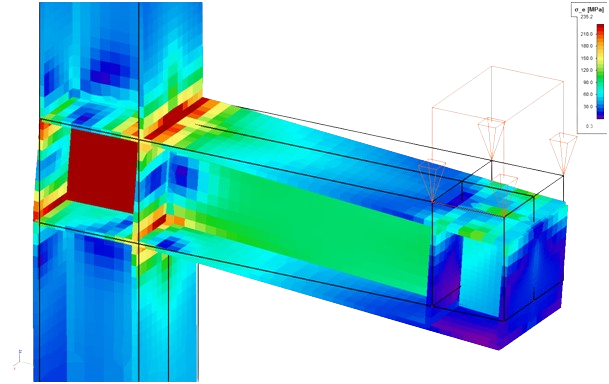

Numerical Methods in Plastic Stress Analysis
The nonlinear and complex behavior of materials in the plastic region makes manual analysis difficult. As a result , numerical methods , such as the Finite
Element Method (FEM), have become standard tools in industrial design and analysis.
Common Software Tools
To simulate the plastic behavior of metals, engineers often use software such as:
ABAQUS
ANSYS Mechanical
LS-DYNA
DEFORM
Autodesk Inventor Nastran
These tools allow for defining material behavior, boundary conditions, loading, contact, and analysis of forming, forging, stretching, shearing , and even impact
processes.
Practical Applications of Plastic Stress Analysis
Design of structures resistant to heavy loading: Such as aerospace structures, vehicle bodies, railway tracks, bridges, etc.
Analysis of metal forming processes: Including bending, deep drawing, rolling, forging, and extrusion.
Failure prediction in critical components: To ensure safety and prevent crack growth or sudden failure.
Fatigue life management of structures: By analyzing local plastic behavior in stress concentration areas.
Impact and explosion analysis: Such as bullet impacts on armor or car crashes.
Challenges and Limitations
Uncertainty in experimental data: Plasticity models require accurate data.
Mesh sensitivity in numerical analysis: Poor meshing can significantly alter results.
High computation time in nonlinear models: Plastic simulations are typically very resource-intensive.
Complex behavior at high strain rates: Such as in impacts or explosions, requiring more accurate dynamic models.
Conclusion
Plastic stress analysis in metals is a vital topic in the design and analysis of engineering components . By understanding concepts like yielding , plastic flow , and
hardening , and applying numerical methods , the real-world behavior of metal parts can be accurately predicted . This knowledge is not only useful for safe and
optimal design , but also plays a decisive role in increasing the life and quality of industrial products . With the development of engineering software and more
accurate modeling methods, the future of plastic analysis is heading toward smart and advanced design.
