Manufacturing parts for aircraft hydraulic systems
Hydraulic systems areconsidered one of the most vital subsystems of an aircraft,responsible forkey functions such as controlling flight surfaces
(ailerons, rudder, elevator),
operating the landing gear, controlling flaps, brakes, and steering the nose wheel. The performance of these systems is directly related to flight
safety and controllability,and any failure in hydraulic components can lead to critical situations.Therefore,manufacturing aircraft hydraulic system
components is carried out with the highest standards of precision, quality, and reliability.

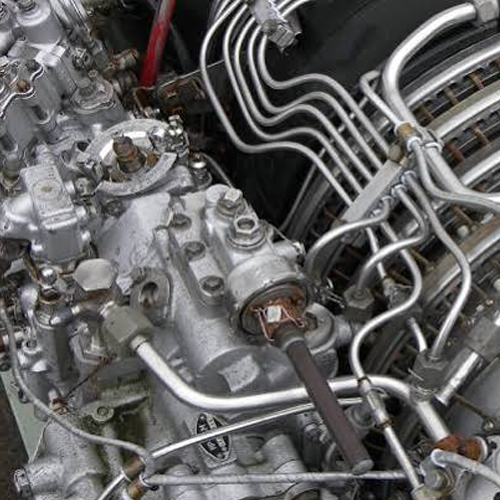

Main Components of Aircraft Hydraulic Systems
The hydraulic system consists of a set of precise and sensitive components that work in coordination .The most important parts of this system
include:
Hydraulic Pump
Hydraulic Actuator or Ram
Pressure and Direction Control Valves
High-Pressure Pipes and Hoses
Hydraulic Oil Reservoir
Filters and Coolers
Sensors and Electronic Control Unit (ECU)
Required Functional Characteristics of Hydraulic Components
To ensure stable and safe operation under harsh conditions such as high temperatures, intense pressure, vibration, and contamination, engineers
carefully design and manufacture each part. Manufacturing parts for aircraft hydraulic systems requires that components withstand pressures ranging
from 3000 to 5000 psi, resist corrosion and fatigue in humid and stressful environments, and remain lightweight yet strong. Additionally, these parts
must be fully compatible with specific hydraulic fluids like Skydrol, operate without leaks, and respond quickly to system commands, guaranteeing
reliability and safety in every flight.
Materials Used in Manufacturing Hydraulic Components
To achieve the mentioned functional properties , specific aerospace – grade materials are used in manufacturing these components:
Pumps and Cylinders: Aluminum 7075 , stainless steel , titanium (chosen for high mechanical strength, light weight , corrosion resistance)
Hoses: Teflon with steel braid, reinforced nylon (for flexibility and high-pressure tolerance)
Valves and Seats: Stainless steel 17-4 PH, special bronze (for dimensional stability and wear resistance)
Reservoir: Aluminum or titanium (for low weight and chemical resistance)
All raw materials must have quality certificates (Material Certificates) and comply with international standards such as AMS, ASTM, and ISO.
Manufacturing Process of Hydraulic System Components
Engineers carefully execute manufacturing parts for aircraft hydraulic systems through several precise and specialized steps.
They start with precise engineering design, creating 3D models using CAD/CAM software such as CATIA, SolidWorks, or NX, and
then simulate pressure, temperature, and flow to optimize performance.
Next, they employ precision CNC machining to produce components like pistons, cylinder housings, valve bodies, and shafts with
micron-level tolerances, ensuring high accuracy and reliability.
Finally, engineers apply surface and heat treatments to enhance durability and resistance to wear and corrosion. These treatments
include aluminum anodizing, hard chrome plating on steel parts, surface nitriding, and coating with polymers that resist hydraulic oil,
guaranteeing that every component performs safely and efficiently under demanding conditions.
Precise Assembly in Controlled Environment
Sensitive components are assembled with precision tools in clean rooms to prevent particle contamination.
Functional and Leak Testing
Assembled systems are subjected to high-pressure testing and leak,flow, and response time tests.Valves must respond within milliseconds,
and no leakage is allowed.
Testing and Quality Control
Due to the sensitivity of hydraulic components , rigorous inspection and quality control are performed at all production stages . Common
methods include:
Leak and pressure tests
Durability cycle tests
Material analysis using spectrometry and chemical testing
Dimensional inspection with CMM, profilometers, and lasers
Non-destructive tests (UT, PT, RT) for detecting fine internal or surface cracks
All results must be documented and recorded in a Quality Traceability System.
Required Standards and Certifications
For hydraulic components used in aircraft, all manufacturing and testing processes must comply with international regulatory requirements
such as:
AS9100: Aerospace Quality Management Standard
FAA Part 21 / EASA Part 145: Aircraft Manufacturing and Repair Requirements
ISO 6789, ISO 8573: Accuracy and purity testing
MIL-STD and SAE: Military and industrial specifications for hydraulic parts
Challenges and Solutions in Manufacturing Hydraulic Components
High precision tolerances: Use of CNC equipment and trained operators
Handling high pressure and leaks: Employ advanced sealing and multi-stage testing
Corrosion from strong oils: Select resistant materials and special coatings
Strict international oversight: Meticulous documentation and full compliance with standards
Future of Aircraft Hydraulic Systems Manufacturing
With technological advances, hydraulic systems are evolving. Trends include:
Smart hydraulics with integrated sensors
Electro-Hydrostatic Actuators as electric alternatives
Use of metal 3D printing for valve blocks or cylinder bodies
Optimized design to reduce weight and improve efficiency
These innovations play an important role in enhancing performance and reducing maintenance costs.
Conclusion
Manufacturing aircraft hydraulic system components is a combination of precise engineering , advanced materials , modern manufacturing
technologies, and strict quality control . These components have a direct impact on flight safety and aircraft performance , so no production
errors are acceptable. With the expansion of new technologies and increasing demands for weight reduction and efficiency, the manufacturing
process will become more complex yet more efficient in the future.
