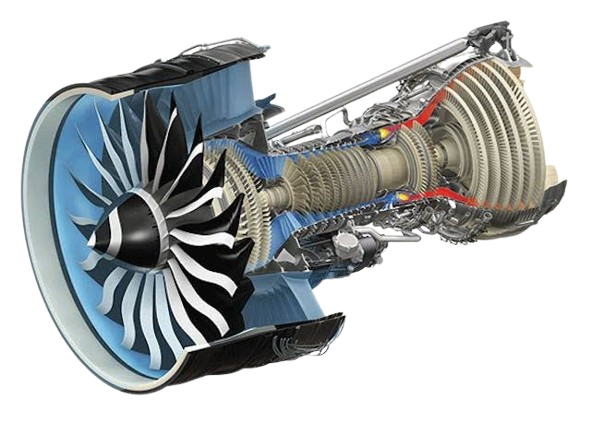

Design of a turbofan engine for an aircraft
The design of a turbofan engine is one of the most complex and critical areas in the aviation industry.This type of propulsion system is considered the main
engine in commercial, military, and some research aircraft. A turbofan engine must operate with minimal fuel consumption, maximum efficiency, low noise,
and high safety. Its design requires a deep understanding of engineering sciences including thermodynamics, fluid mechanics, aerodynamics, heat transfer,
advanced materials, and control systems.
What is a Turbofan?
A turbofan engine is a combination of a turbojet and a large fan that generates thrust through two primary paths:
Core Flow: Air enters the compressor, is compressed, mixed with fuel, burned in the combustion chamber, expanded through the turbine, and exits via the
nozzle.
Bypass Flow: A portion of the air bypasses the core and is propelled backward by the fan . This path produces the majority of the thrust and enhances
propulsive efficiency while reducing noise.
Main Stages of Turbofan Engine Design
Conceptual Design
In this phase, based on the aircraft’s mission requirements such as speed, flight altitude, range, and weight, the main engine parameters are defined:
Bypass Ratio
Overall Pressure Ratio (OPR)
Thrust-to-weight ratio
Specific Fuel Consumption (SFC)
Passenger aircraft typically use engines with a high bypass ratio (above 10) to reduce fuel consumption and noise. This stage is a fundamental part of
the Design of a turbofan engine for an aircraft.
Preliminary Design
At this stage, major components such as the fan, compressor, combustion chamber, turbine, and nozzle are roughly dimensioned and their initial
features are determined. Thermodynamic cycle analysis is performed using software such as GasTurb or NPSS, forming a key step in the Design of
a turbofan engine for an aircraft.
Detailed Design
This involves 3D geometric design of components, material selection, stress and temperature analysis, blade cooling assessments, and aerodynamic
performance evaluation. Software tools used include:
ANSYS Fluent or CFX (for CFD analysis)
ANSYS Mechanical or ABAQUS (for stress and vibration analysis)
STAR-CCM+ or COMSOL (for multiphysics analysis)
This stage ensures precision and reliability in the overall Design of a turbofan engine for an aircraft.
Key Components in Turbofan Engine Design
Fan
The large front-mounted fan propels a substantial amount of air backward, playing a crucial role in thrust generation and noise reduction. Fan blades are
designed using lightweight composites like carbon/epoxy, increasing the thrust-to-weight ratio. This is a vital aspect in the Design of a turbofan engine
for an aircraft.
Compressor
Multi-stage axial compressors increase the pressure of incoming air. Their efficiency directly affects fuel consumption. Compressor blades must be
lightweight, fatigue-resistant, and aerodynamically optimized, which is critical in the Design of a turbofan engine for an aircraft.
Combustion Chamber
This is where fuel is injected and burned with air. The design must ensure complete combustion, high temperature, and low emissions. Advanced
technologies like Low Temperature Combustion (LTC) are used in modern engines to reduce NOx emissions, forming a core part of the Design of a
turbofan engine for an aircraft.
Turbine
The turbine extracts energy from hot gases to drive the compressor and fan. Since it operates at very high temperatures, precise blade design,
effective cooling systems, and use of nickel-based superalloys or single-crystal metals are essential.
Nozzle
Exhaust gases are accelerated through the nozzle to produce final thrust. Nozzle design plays an important role in jet noise reduction and thrust
vectoring control.
Environmental and Acoustic Considerations
Due to increasingly strict environmental regulations from global organizations like ICAO and FAA, turbofan engines must have lower emissions and reduced noise.
Measures include:
Use of low-speed fans
Sound-absorbing liners in the fan duct
Chevron nozzle design for noise reduction
These features are incorporated into modern Design of a turbofan engine for an aircraft.
Design for Maintenance and Safety
Turbofan engines must demonstrate extremely high reliability, as failure can lead to catastrophic consequences. Key design considerations include:
Use of Engine Health Monitoring systems
Modular design to ease part replacement
Reinforcement against bird strikes
All these factors are essential components in the Design of a turbofan engine for an aircraft.
Design and Analysis Tools
GasTurb / NPSS: Thermodynamic cycle analysis
ANSYS Fluent / CFX: Flow and combustion analysis
ABAQUS / ANSYS Mechanical: Stress, creep, and fatigue analysis
SolidWorks / CATIA: Geometric design of components
MATLAB/Simulink: Engine control system design and simulation
These tools support the precise Design of a turbofan engine for an aircraft.
Challenges and the Future of Turbofan Design
Turbofan engine design faces several key challenges:
Improving efficiency without increasing weight or emissions
Using clean fuels and hydrogen
Developing more complex cooling systems to raise operational temperatures
Reducing noise to inaudible levels for residents near airports
In the future, turbofan engines will evolve toward hybrid designs (such as Open Rotor or Geared Turbofan) and increased integration of artificial intelligence in
engine control and maintenance systems, forming the next stage of Design of a turbofan engine for an aircraft.
Conclusion
Turbofan engine design is a combination of art, science, and engineering. From thermodynamic principles to advanced numerical analyses, the design must
balance performance, safety, environmental impact, and cost. The future of these designs depends on innovations in materials, aerodynamics, and control
systems. Aerospace engineers, equipped with advanced design tools and a strong understanding of flight systems, will play a vital role in shaping the next
generation of propulsion technologies, making these engines ever more sophisticated and reliable.
